Workshop Measuring Tools

Mastering precision in the workshop! This image showcases essential measuring tools used for accuracy and quality in various trades and engineering applications:

Vernier Caliper: Used for precise measurements of internal, external, and depth dimensions.

Micrometer: Offers even higher precision than a vernier caliper for measuring small distances or thicknesses.

Dial Gauge: Measures small linear distances or deflections, often used to check runout or flatness.

Steel Rule: A fundamental tool for basic linear measurements.

Feeler Gauge: A set of blades of varying thicknesses used to measure small gaps or clearances.

Spirit Level: Ensures surfaces are perfectly horizontal or vertical by indicating levelness.

These tools are indispensable for anyone working in manufacturing, mechanics, woodworking, or any field requiring accurate measurements!

Common failure modes of gaskets, categorized by cause

Gaskets are critical sealing components used to prevent leakage between two mating surfaces. However, they can fail due to various reasons. Below are common failure modes of gaskets, categorized by cause:

🔧 1. Mechanical Failure

-Over-compression: Gasket crushed beyond its design limit, leading to loss of elasticity and sealing ability.

-Under-compression: Insufficient bolt load causes poor sealing and leakage.

-Improper bolt tightening: Uneven torque can create stress concentrations and leakage paths.

🌡️ Thermal Failure

-Thermal cycling: Repeated heating and cooling cause expansion and contraction, degrading the gasket material.

-Overheating: Exposure to temperatures beyond the gasket’s rating leads to hardening, cracking, or burning.

🧪 Chemical Attack

-Incompatible media: Fluids or gases chemically degrade the gasket, causing swelling, embrittlement, or dissolution.

-Oxidation: Long-term exposure to oxygen at high temperatures weakens certain gasket materials.

🔄 Creep and Relaxation

-Creep: Gasket slowly deforms under constant load at high temperature, reducing sealing force.

-Stress relaxation: Loss of bolt load over time reduces compression on the gasket, leading to leaks.

📏 Improper Gasket Selection or Installation

-Wrong material: Selecting a gasket not suitable for pressure, temperature, or chemical environment.

-Poor surface finish: Flange surface too rough or too smooth affects sealing.

-Misalignment: Incorrect gasket placement or flange misalignment causes uneven stress distribution.

🌊 Fluid Pressure-Related Failures

-Blowout: Sudden rupture of gasket under pressure due to weak design or incorrect installation.

-Extrusion: Gasket material pushed out of joint under high pressure, often due to soft material or high gap.

🧽 Environmental or Aging Effects

-Material degradation: Natural aging, UV exposure, or moisture can weaken gasket properties over time.

✅ Summary:

Gasket failures often result from incorrect compression due to improper bolt torque, leading to leaks. Thermal cycling and chemical exposure can degrade the gasket material over time. Creep and relaxation reduce sealing force under sustained load and heat. Misalignment during installation causes uneven sealing, while sudden pressure spikes may lead to gasket blowout. Proper selection and installation are key to preventing these issues. #qaqcinspector #QAQCTraining #qcinspection #inspection #API #

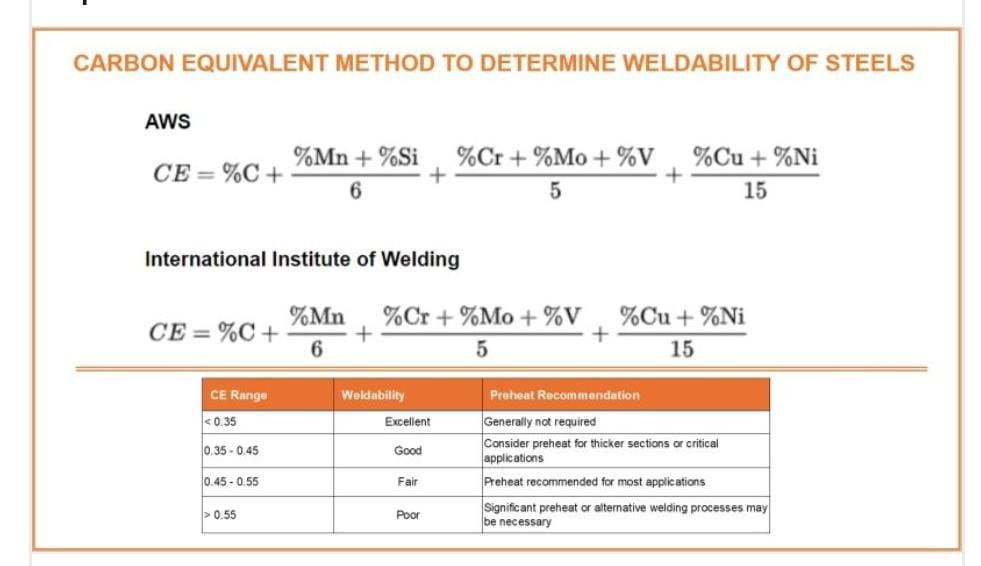

Mastering Arc Welding: Choosing the Right Process for the Job

Arc welding remains a cornerstone of metal fabrication, using a high-temperature electric arc to melt and fuse materials. With options ranging from manual to fully automated systems, selecting the optimal process depends on your application, environment, and material. Let’s break down the key methods:

✴️ Core Arc Welding Processes Compared:

1.  SMAW (Shielded Metal Arc Welding / "Stick")

    * Electrode: Flux-coated consumable stick.

    * Best For: Portability, outdoor/windy conditions, simple setups.

    * Limitations: Slower speed, frequent electrode changes, requires post-weld slag removal.

    * Challenges: High operator skill dependency; difficult on thin sections.

2.  GTAW (Gas Tungsten Arc Welding / "TIG")

    * Electrode: Non-consumable tungsten; filler metal added separately.

    * Best For:** Precision, clean welds on thin materials, non-ferrous metals (Al, Ti, Mg).

    * Limitations: Slow deposition rate; not ideal for thick sections.

    * Challenges: Extremely sensitive to contamination; demands constant inert gas shielding and high operator skill.

3.  SAW (Submerged Arc Welding)

    * Electrode: Continuous consumable wire fed under a granular flux blanket.

    * Best For: High deposition rates, deep penetration on thick sections, minimal spatter.

    * Limitations: Restricted to flat/horizontal positions; bulky equipment.

    * Challenges: Limited suitability for complex joints or confined spaces.

4.  FCAW (Flux-Cored Arc Welding)

    * Electrode: Tubular wire with flux core (gas-shielded or self-shielded).

    * Best For: High productivity outdoors or on heavy/dirty materials.

    * Limitations: Produces slag and fumes; requires spatter management.

    * Challenges: Needs careful parameter control to prevent porosity and defects.

5.  MIG/MAG (Metal Inert/Active Gas Welding / "GMAW")

    * MIG (Inert Gas - Ar/He):

        * Electrode: Continuous solid wire.

        * Best For: Clean, fast welding on non-ferrous metals (Al) or clean steel; minimal cleanup.

        * Limitations: Indoor/calm environments only.

        * Challenges: Susceptible to wind/drafts; requires precise gas/voltage control.

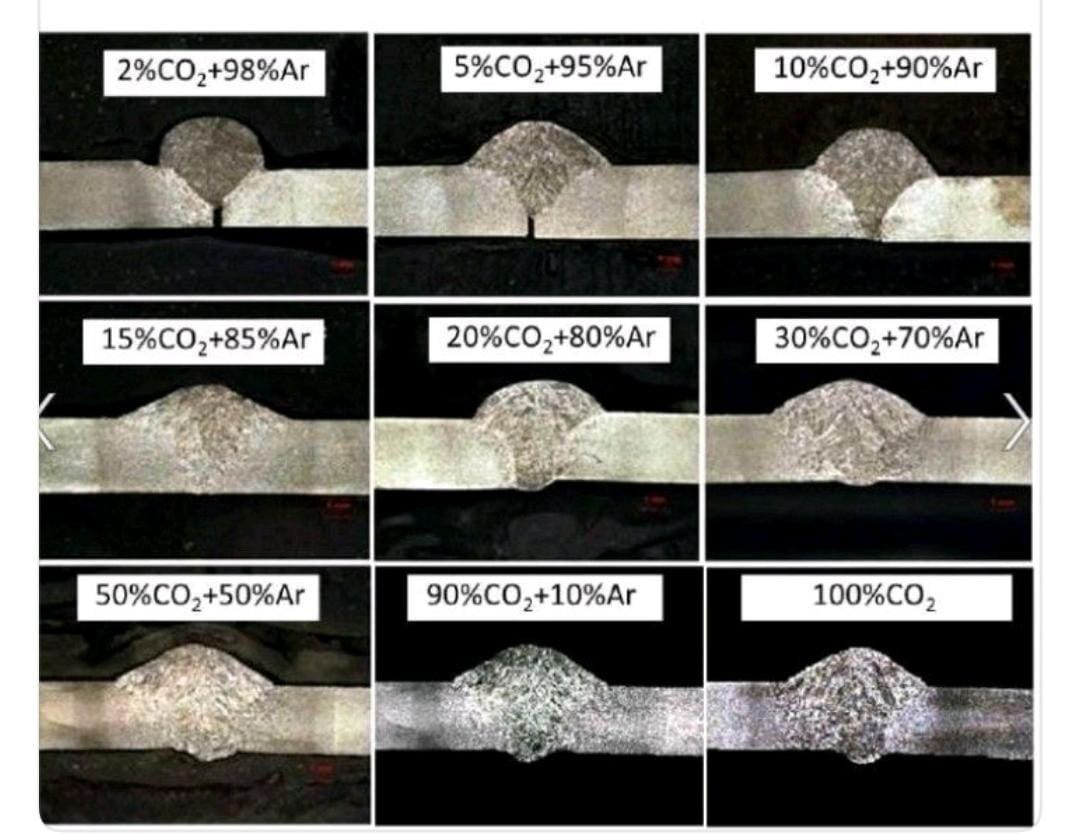

    * MAG (Active Gas - CO2/Ar+CO2):

        * Electrode: Continuous solid wire.

        * Best For: High-speed, efficient welding of carbon steels.

        * Limitations: Not for non-ferrous metals.

        * Challenges: Potential for increased spatter/oxidation; requires good gas control.

❇️ Key Insights for Success:

✔️ Understanding the pros and cons of each arc welding process ensures optimal selection.

✔️ Electrode type and shielding approach significantly impact weld quality.

✔️ Welding challenges can be mitigated through training, proper equipment setup, and inspection.

𝑪𝑶𝑹𝑹𝑶𝑺𝑰𝑶𝑵 𝑴𝑨𝑷𝑷𝑰𝑵𝑮 𝑼𝑺𝑰𝑵𝑮 𝑯𝒀𝑫𝑹𝑶𝑭𝑶𝑨𝑴

Corrosion Mapping Using Hydrofoam is an advanced non-destructive testing (NDT) method, primarily used to detect and map corrosion or wall thinning in metal structures such as pipelines, tanks, and vessels.

Here’s a clear breakdown for better understanding:

---

🧪 What is Hydrofoam?

Hydrofoam is a special foam-based coupling medium that is used in ultrasonic testing (UT). It helps transmit ultrasonic waves efficiently between the transducer and the surface being tested — even on irregular or vertical surfaces, where liquid couplants may not work well.

---

🔍 What is Corrosion Mapping?

Corrosion mapping is a technique used to scan large surfaces and detect:

Internal and external corrosion

Erosion

Wall thickness loss

Pitting

It helps in predictive maintenance by identifying areas needing repair or replacement before failure.

---

⚙️ How Corrosion Mapping Using Hydrofoam Works:

1. Surface Preparation:

Clean the area of paint, dirt, or loose corrosion.

No need to polish, just ensure smooth contact.

2. Apply Hydrofoam:

The foam is sprayed or applied as a pad on the surface.

Acts as a stable, consistent couplant for UT.

3. Ultrasonic Scanning:

A phased array UT (PAUT) or conventional UT probe is passed over the surface.

Hydrofoam ensures consistent wave transmission.

4. Data Collection:

UT device collects thickness measurements point by point or continuously.

Creates a 2D or 3D map showing wall thickness.

5. Result Analysis:

Areas with reduced thickness indicate corrosion.

Color-coded maps make defects easy to spot.

---

✅ Advantages of Using Hydrofoam for Corrosion Mapping:

Works on vertical and overhead surfaces

No messy gel or water

Safer for electronic equipment (no liquid spill)

Can cover large areas quickly

Excellent resolution and accuracy

---

📊 Applications:

Oil & Gas pipelines

Pressure vessels

Storage tanks

Marine and offshore platforms

Power plants

Various material used in pressure vessels for EPC (Engineering, Procurement, and Construction) oil and gas projects.

 The relevant indicator and selection should be analyzed to ensure the design requirement of the project technically accurate.

Key Points:

1. Material Types : The table lists common pressure vessel materials like Carbon Steel, Low Alloy Steel, Stainless Steel, Duplex Stainless Steel, Nickel Alloys, Aluminum, FRP (Fibrous Reinforced Plastics), and Titanium.



2. Properties & Applications: Each material is described with its ASME standard reference, grades, key properties (e.g., corrosion resistance, strength), and typical applications (e.g., storage tanks, separators, LNG units).

3. Important Codes: Standards like ASME Section II (materials), NACE MR0175 (sour service), API 650/620 (tanks), and ISO 14692 (FRP) are highlighted for compliance checks.

#Why Is It Matters:

This table helps engineers select the right material based on project requirements (e.g., cost, temperature, corrosion resistance) while ensuring adherence to industry standards for safety and performance.

For example:

- Carbon Steel (SA 516): Affordable but needs corrosion monitoring; used in water storage tanks.

- Duplex Stainless Steel (2205): Ideal for harsh offshore environments with H₂S and chlorides.

- Nickel Alloys (625): Used in cryogenic or highly corrosive services like amine units.

This summary ensures efficient material selection for durability, safety, and cost-effectiveness in oil & gas projects.

Fire Protection Valves: Functions & Awareness

Here are 14 essential valves used in fire protection systems, each serving a critical role in safety and emergency response:

1. Gate Valve

Purpose: Clearly shows whether water is flowing or stopped.

Use Case: Visual confirmation for fire system readiness.

2. Butterfly Valve

Purpose: Saves space and controls water to different areas.

Use Case: Compact valve for sectional water control.

3. Gate Valve

Purpose: Allows safe maintenance without shutting the entire system.

Use Case: Isolates sections for repairs.

4. Check Valve

Purpose: Prevents water from flowing backward.

Use Case: Ensures one-way flow and prevents system damage.

5. Test & Drain Valve

Purpose: Makes testing and draining simple and safe.

Use Case: Used in regular system testing and maintenance.
